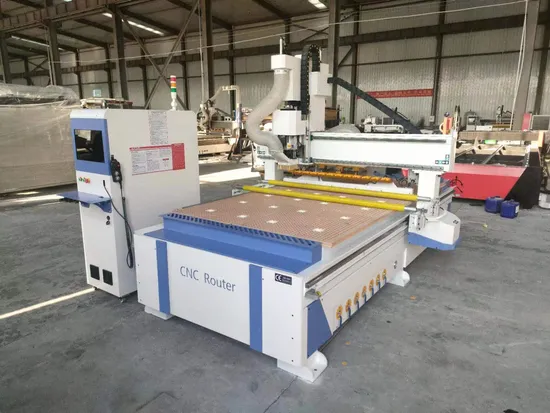

High Speed CNC Router 1325 Auto Tool Change Engraving Machine 1530

Basic Info.

Model NO.	1325
Application Material	Wood
Automation	Automatic or Manual for Opitional
Control	CNC
Motor Power	High Power
Engraving Head Speed Adjustability	Wide Adjustable Range
Certification	CE, ISO, API
Current	AC
Application	Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
Customized	Customized
Tool Numbers	8, 10, 12PCS
Customize Size	as Per Customer Requested
Spindle	Tool Change Spindle 9kw
Wood Works Machinery	CNC Woodworking Machinery
Wood Carving Machine	Wood Engraving Machine
Technical Service	Online or Oversea
High Speed	Auto Tool Change
Table	Vacuum Table 11kw
CNC Router	Atc Linear Automatic Tools
Motor Driver	Delta Servo Motor
Weight	1500kgs
Service	Offering Oversea Service
Dust-Proof System	Xyz High Quality Dust Cover
Transport Package	Woodencase
Specification	1500x2500x200
Trademark	ALLWIN
Origin	Jinan, Shandong
HS Code	8465990000
Production Capacity	500/Month

Packaging & Delivery

Package Size 370.00cm * 225.00cm * 160.00cm Package Gross Weight 1300.000kg

Product Description

1530 Wood engraving cnc router with Linear tool change Technical Features:* Linear automatic tool change cnc router*Welded,No assembly required*Spindle with water cooling, which keeps the spindle at a constant temperature and maintains longevity*Computer displaying the tool path and the G-code during design*Breakpoint memory, can continue to work afte power off & breaking knife*Compatibility software:Type 3,Artcarm,UG,Proe,CorelDraw *working size:we can build any working size according to customer requested.from small size to big size1200mmx1200mm 600mmx900mm 1300mmx1300mm 1500x3000mm and 2000mmx4000mmdriving and motor:Stepper motor and Yaskawa servoService. We have 10 experienced engineers and 1 technical online customer service to supply 18-hour online service. If you have any problems, we can solve them online via skype and whatsappB. Also, remote control service via the software Team Viewer is provided for the customer to install the software and adjust the program.Kindly Tips:Quality is life ,Service is soul…For us Completing delivery is not the end but the beginning of the business.recently we have been receiving some complaints from potential customers because they bought machine from their suppliers but they lost contacts with their suppliers. Cheap price 3 axis 1325 Wood Cnc Router Machine with linear tool change

NO.	Description	Parameter
1	X,Y,Z Working Area	1500x3000x400mm
2	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
3	X,Y,Z Repositioning Accuracy	±0.03mm
4	Table Surface	Vacuum table with T-slot
5	Frame	Welded Structure
6	X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Guide
7	Z Structure	Hiwin Rail Linear Guide and TBI Ball Screw
8	Max. Power Consumption	(Without Spindle) 9kw
9	Max. Rapid Travel Rate	25000mm/min
10	Max. Working Speed	18000mm/min
11	Spindle Power	9.0KW Air cooled spindle
12	Spindle Speed	0-24000RPM
13	Drive Motors	Delta servo
14	Working Voltage	AC380V/50/60Hz,3PH (Option: 220V)
15	Command Language	G Code
16	Operating System	DSP System (Options: Ncstudio/Mach3 PC Software)
17	Computer Interface	USB
18	Flash Memory	128M(U Disk)
19	Collet	ER25
20	X,Y Resolution	<0.01mm
21	Software Compatibility	Type3/UcancameV9 Software, (Option: Artcam Software)
22	Running Environment Temperature	0 - 45 Centigrade
23	Relative Humidity	30% - 75%
24	Inverter	Best
25	Electrical components	China good brand
26	Limit switch	OMRON
27	Driver	Leadshine

Applied material for 3 axis woodworking cnc router high precision with stable working.Wood, Composites, MDF,Aluminum, Steel, Gold,Silver,Copper,Acrylic,Plastic, Foam and so on. Application of high precision smooth cnc routerWoodworking,3D Carving,Cabinetry,Sign Making,Acrylic Fabrication, Aluminum Fabrication,Exhibits and Fixtures,etcFAQ:A This is the first time I use this kind of machine, is it easy to operate?1. There are English manual or teaching video that show how to use machine.2. If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time. B If machine have any problem after I receive it, how can I do ? Free parts send to you in machine warranty period if machine have any problem.C MOQ ?The minimum order is 1 set machine, if you order more one time, the price will be better.D How can I buy this machine from you? ( Very easy and flexible !)1. Consult us about this product on line or by e-mail. 2. Negotiate and confirm the final price , shipping , payment methods and other terms. 3. Send you the proforma invoice and confirm your order. 4. Make the payment according to the method put on proforma invoice.5. We prepare for your order in terms of the proforma invoice after confirming your payment.And 100% quality check before shipping. 6. Send your order by air or by sea. E 10 good reasons why you should buy from us? 1 We are a real factory offering products2 Free technical advice by QUALIFIED MECHANICAL ENGINEERS3 Company in business for many years4 Over 50 countries customers served!5 Buy directly saving your money!6 All machine with CE certificate.7 Machine and spindle warranty 1 year.8 Our engineer can go to your country to provide technical guidance9 We have phone support in English, if you have any questions, you can call it, we can give you a best solution within 24 hours10 Fast delivery, save your time.
